SwitcherGear Interface Modules

Hardware interface modules perform the electrical conversion of signals between the external power system and the microcontroller (MCU).

Select from a wide variety of modules for interfacing to gate-drivers, voltage & current sensors, shaft encoders and more.


Signals in the power system are wired to the System Connector. Modules include filtering and protection to shield the MCU from these electrically "dirty" signals.

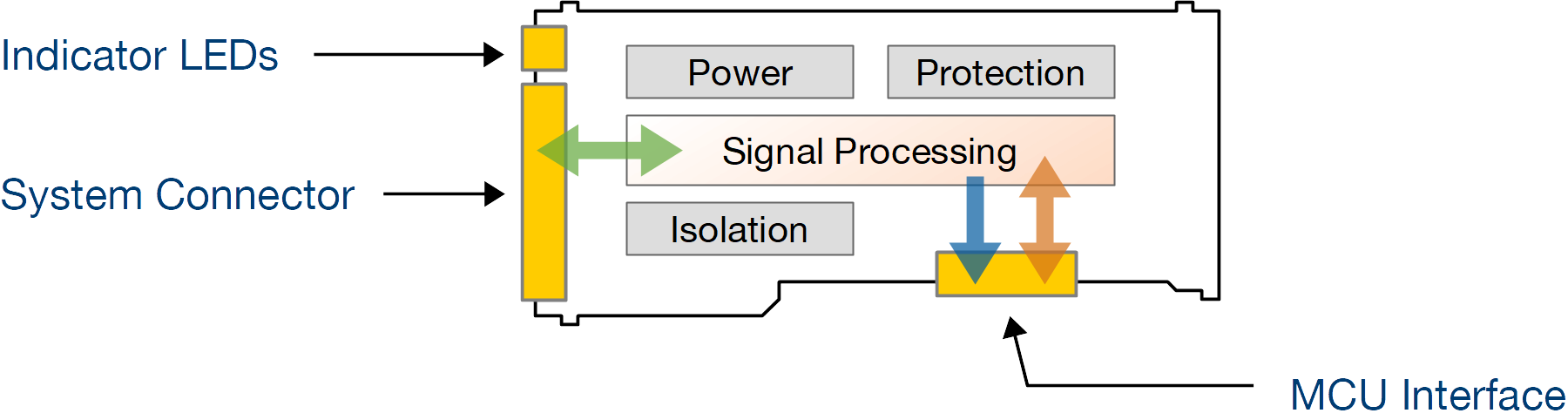

Anatomy of a SwitcherGear Hardware Interface Module.

The MCU interacts with the module using the low-voltage digital and analogue signals of the MCU Interface.

Comprehensive Features

SwitcherGear modules include all required interface circuitry to connect to real-world power converter components:

  • line drivers
  • signal conditioning
  • power supplies
  • isolation
  • protection
In most cases, you just connect a wire between the SwitcherGear controller and gate-drivers, sensors, shaft encoder, etc.

In contrast, other controllers provide only generic I/O functionality and require the user to design and build their own interface circuitry.

Converter Interface Modules

The fastest way to build a power converter system is to use off-the-shelf components, including:

  • gate drivers that mount directly to standard devices
  • integrated power modules (IPM) that include DC link and heatsink
  • power stacks that include current, voltage & temperature sensors

The SwitcherGear ecosystem includes modules that can connect directly to many of these power stage components.

SwitcherGear connects directly to industrial gate drivers.
CON001 CON002 CON003
Description 3-phase half-bridge interface 3-phase half-bridge interface 3-phase IGBT stack interface
Typical Usage Connect to generic interface to gate-drivers. Connect to half-bridge gate-drivers from Power Integrations (external link) and SEMIKRON® SEMITEACH® IGBT stack (external link) using ribbon cable. Connect to SEMIKRON® SEMIKUBE® (external link) IGBT stack using a single ribbon cable.
System Connector 12-way pluggable screw terminal Three 10x2 pin headers Single 17x2 pin header
Module Isolation No, use isolated gate-driver No, use isolated gate-driver No, SEMIKUBE® includes isolated gate-drivers and sensors
MCU Peripherals & Signals PWM, TripZone PWM, TripZone PWM, TripZone, ADC, SPI/MCBSP
SwitcherWare Library Support Yes Yes Yes
Digital Output 6x gate PWM 6x gate PWM 6x gate PWM
Digital Input 3x trip 3x trip 1x trip
Analogue Output - - -
Analogue Input - - 3x phase current
1x DC link voltage
1x heatsink temperature
Supply Output +15 VDC +15 VDC +24 VDC

Analogue Interface Modules

Module AIN004 connects to standard industrial sensors for real-time measurement of AC/DC currents and voltages. Current sensors are available in the range 10 to 500 A, and beyond. Voltage sensors are available up to 1200 V, and beyond.

Modules AIN003 and AOV001 enable SwitcherGear to interact with standard industrial components and process control systems (PLC).

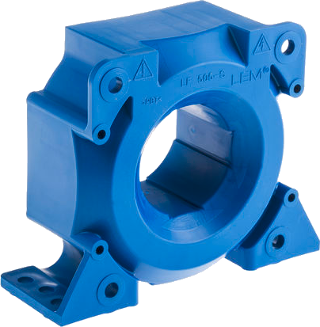

SwitcherGear connects directly to industrial current sensors.

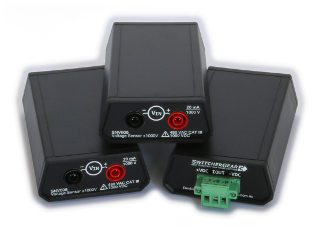

SwitcherGear connects directly to industrial voltage sensors.
AIN004 AIN003 AOV001
Description 4-channel analogue input for sensors with current output 4-channel analogue input, industrial signalling 4-channel analogue output, industrial signalling
Typical Usage Current sensors, up to 1000 A.
Voltage sensors, up to 1000 V.
Input from sensors, system controllers.
User input from potentiometer.
Output to actuators, system controllers.
Real-time signal visualisation to oscilloscope.
System Connector 12-way pluggable screw terminal 12-way pluggable screw terminal 12-way pluggable screw terminal
Module Isolation No, use isolated/protected sensors Yes Yes
MCU Peripherals & Signals ADC, TripZone/GPIO SPI/MCBSP SPI/MCBSP
SwitcherWare Library Support Yes Yes Yes
Analogue Output - - 0 to 5 V, 0 to 10 V, ±5 V, ±10 V
Analogue Input ±20 to ±200 mA in 12 ranges 0 to 10 V, ±2.5 V, ±5 V, ±10 V
±25 mA
-
Supply Output ±12 VDC +10 VDC -

Digital Interface Modules

Module DIO005 is a general purpose interface for reading digital levels and driving loads.

DIN001 DIO005
Description Digital input for incremental encoder 8-channel digital input/output
Typical Usage Connect to quadrature/ incremental shaft encoder. Digital input from sensors, switches.
Digital output to relays, actuators, indicators.
System Connector 12-way pluggable screw terminal 12-way pluggable screw terminal
Module Isolation Yes Yes
MCU Peripherals & Signals EQEP, TripZone/GPIO SPI
SwitcherWare Library Support Yes Yes
Digital Output - 8x current source, 0.5 A
Digital Input A/A, B/B, Z/Z
Fault/Fault
8x current sink (IEC 61131-2)
Supply Output +5 VDC -
Supply Input - +11 to +34 VDC

Fieldbus Interface Modules

Physical layer interfaces for common fieldbus protocols.

NETCAN NET485 NET232
Description Single-node daisy-chain fieldbus interface Single-node daisy-chain fieldbus interface Single-node fieldbus interface
Typical Usage Physical layer interface for fieldbus based on CAN, e.g. CANopen, DeviceNet, etc. Physical layer interface for fieldbus based on multi-drop RS-485, e.g. PROFIBUS, etc. Physical layer interface for communications based on RS-232.
System Connector 12-way pluggable screw terminal 12-way pluggable screw terminal 12-way pluggable screw terminal
Module Isolation Yes Yes Yes
MCU Peripherals & Signals ECAN SCI, GPIO SCI
Physical Layer CAN (ISO 11898-2) RS-485 RS-232
Bit Rate Up to 1 Mbps ≥10 Mbps ≥115 kBaud
